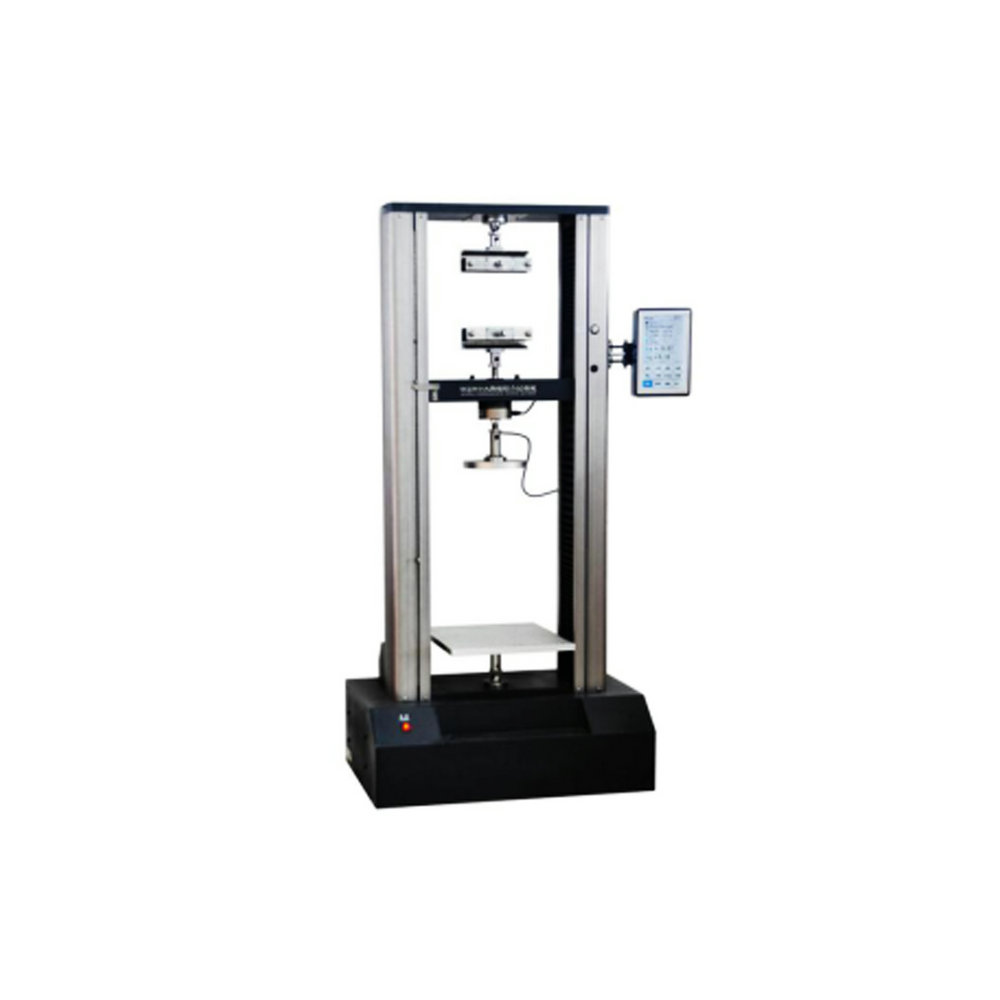

SGJ3014A sponge comprehensive testing machine

• SGJ3014A sponge comprehensive testing machine

  Application:

     This type of instrument is high grade, perfect function, high precision, stable and reliable in domestic industry. It is widely used in the hardness, tensile strength, indentation ratio and elongation at break test of sponges.

  CONFORMANCE TO STANDARDS:

      GB/T26392-2011, ASTM D3574, ISO 1798, GB/T10807-2006, ISO 2439, GB/T6344-2008, GB/t 10808-2006.

   Product Features:

       1, the use of imported servo drive and motor (vector control) .

       2, selected imports of ball screw, precision guide rail.

       3. Import encoder for accurate control of instrument positioning and elongation.

       4. With high precision sensors, “STMicroelectronics”St series 32-bit Microcontroller, 24-bit ADC.

       5, with large color touch screen display operation.

      6. Online software supports the Windows operating system,

      7. Pre tensioning software digital settings.

      8, distance length digital settings, automatic positioning.

      9, conventional protection: Mechanical Switch Protection, upper and lower limit stroke, overload protection, over-voltage, over-current, over-heat, under-voltage, under-current, leakage automatic protection, emergency switch manual protection.

      10.Force calibration: Digital Code calibration (Authorization Code) to facilitate instrument calibration, control accuracy.

  Software Features:

       1, the software support Windows operating system, that is, open-and-use, very convenient, without professional training.

       2. Computer on-line software support Chinese and English operation.

       3, curing has been confirmed by the user test procedures, the parameters are set default values, users can modify.

       4. Parameter setting interface: parameters such as sample number, color, batch, sample number are set independently and printed or saved to.

       5, Test Curve Selection Point Zoom in and out function, click any point can show the tensile value and elongation value.

       6, test data report can be converted to Excel, word, automatic monitoring test results, easy to connect with customer enterprise management software.

       7. Save the test curve to your PC for the record.

       8. The testing software includes many kinds of material strength testing methods, which make the testing more convenient, fast, accurate and low-cost operation.       9. The selected parts of the curve can be enlarged and decreased at will during the experiment.

       10. The curve of the tested sample can be shown in the same report as the test result.

        11. Statistical Point function, that is to read the data on the measured curve, can provide a total of 20 sets of data, in accordance with the user input for the different force values or elongation to get the corresponding extension or force values.

        12. Multiply function.

        13. Test units can be converted to any number of units, such as Newton, pound sterling, kilogram weight, etc. .

        14. Software analysis function: Break Point, break point, stress point, yield point, initial modulus, elastic deformation, plastic deformation and so on.

        15, unique (host, computer) two-way control technology, make test convenient and quick, test results rich and diverse (data report, curve, graph, report form.
